不銹鋼十字平頭鋼牙螺絲 #12 (ST5.5)xxx

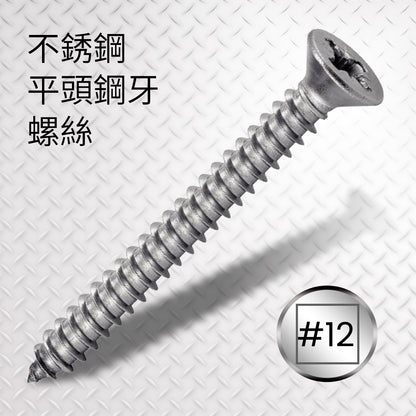

不銹鋼十字平頭鋼牙螺絲 #12 (ST5.5) Flat Head Tapping Screw
DIN 7982 / ISO 7050標準尺寸 :
#12 x 3/4"
#12 x 1"
#12 x 1-1/4"
#12 x 1-1/2"
#12 x 2"
#12 x 2-1/2""
#12 x 3"
**建議聯絡客服確認貨存才付款。若需要其他長度或規格，亦可跟客服聯繫**

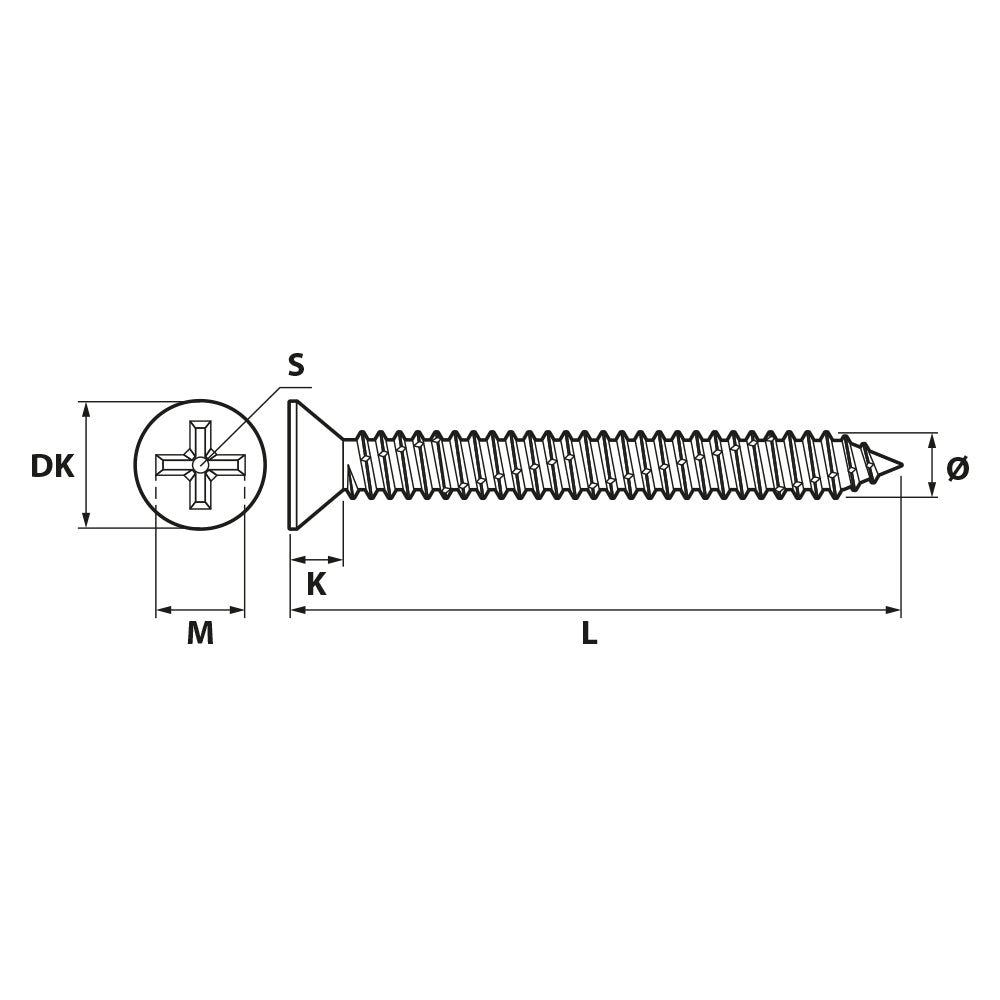

Specifications (DIN 7982)
| Thread size | Thread pitch | Head dia. DK max. (mm) |
Height of head K max. (mm) |
PH (Phillips) |
| ST3.5 (#6) | 1.3 | 6.8 | 2.1 | 2 |
| ST4.2 (#8) | 1.4 | 8.1 | 2.5 | 2 |
| ST4.8 (#10) | 1.6 | 9.5 | 3.0 | 2 |
| ST5.5 (#12) | 1.8 | 10.8 | 3.4 | 3 |
| ST6.3 (#14) | 1.8 | 12.4 | 3.8 | 3 |
